Competitive Edge Case ⑦ – Vary Tech Empowers Nantong Haizhiyang: Hazardous Waste Treatment Transforms into "Green Treasure"

Published on:2025-08-26

In 2024, the national utilization and treatment volume of hazardous waste was approximately 130 million tons. Efficiently and safely disposing of hazardous waste while achieving resource utilization is a major issue facing many enterprises. Nantong Haizhiyang Environmental Protection Engineering Technology Co., Ltd. (hereinafter referred to as "Nantong Haizhiyang") has joined hands with Vary Tech to paint a green picture of hazardous waste transformation.


Profound Foundation as a High-Tech Enterprise, Outstanding Hazardous Waste Disposal Capability


Located in Nantong Economic and Technological Development Zone, Jiangsu Province, Nantong Haizhiyang was established in 2014. It is a director unit of the Jiangsu Provincial Environmental Protection Industry Association and a vice president unit of the Nantong Environmental Protection Industry Association. The company boasts excellent hazardous waste treatment capabilities and innovative strength, with dozens of patented technologies, and was recognized as a high-tech enterprise in 2024



Nantong Haizhiyang is equipped with 6 sets of batch-type anaerobic pyrolysis technology equipment, and its wide applicability has consolidated the company's hazardous waste treatment capacity. The company's annual licensed hazardous waste operation volume is as high as 73,700 tons, covering 11 categories including waste mineral oil, waste acid, hydrocarbon/water mixtures, waste emulsion, phenol-containing waste, ether-containing waste, organohalides, organic solvent waste, dyes, coatings (including paints), and organic resins. Among them, the company's annual treatment capacity of hazardous waste packaging containers (HW 49) reaches 1 million; the annual treatment and utilization capacity of mineral oil-containing waste (HW 08) is 1,800 tons; and the annual treatment and utilization capacity of waste emulsion (HW 09) is 10,000 tons.



Oxygen-free Pyrolysis Technology Leads, Realizing "Turning Waste into Treasure" in Hazardous Waste Treatment

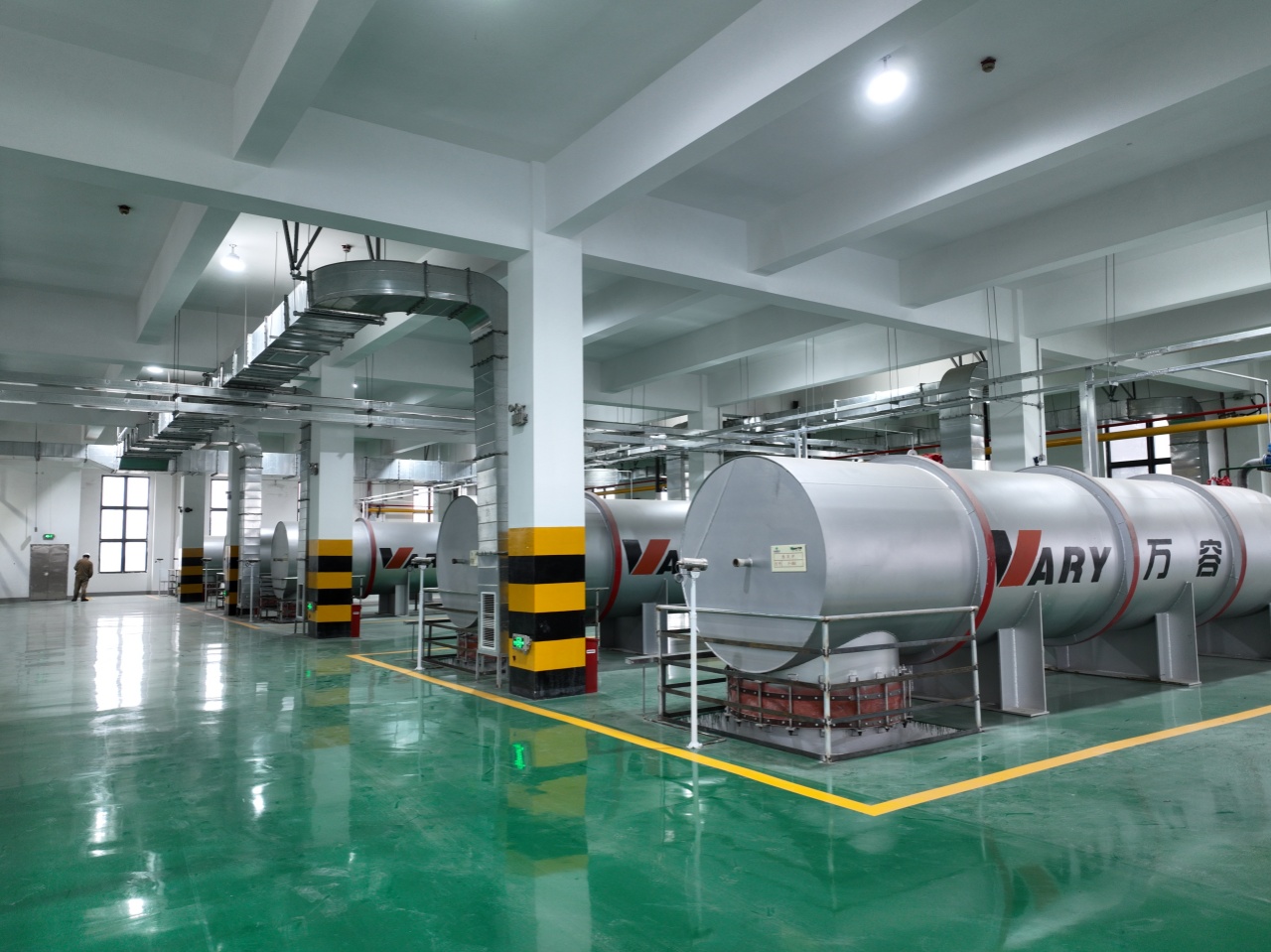

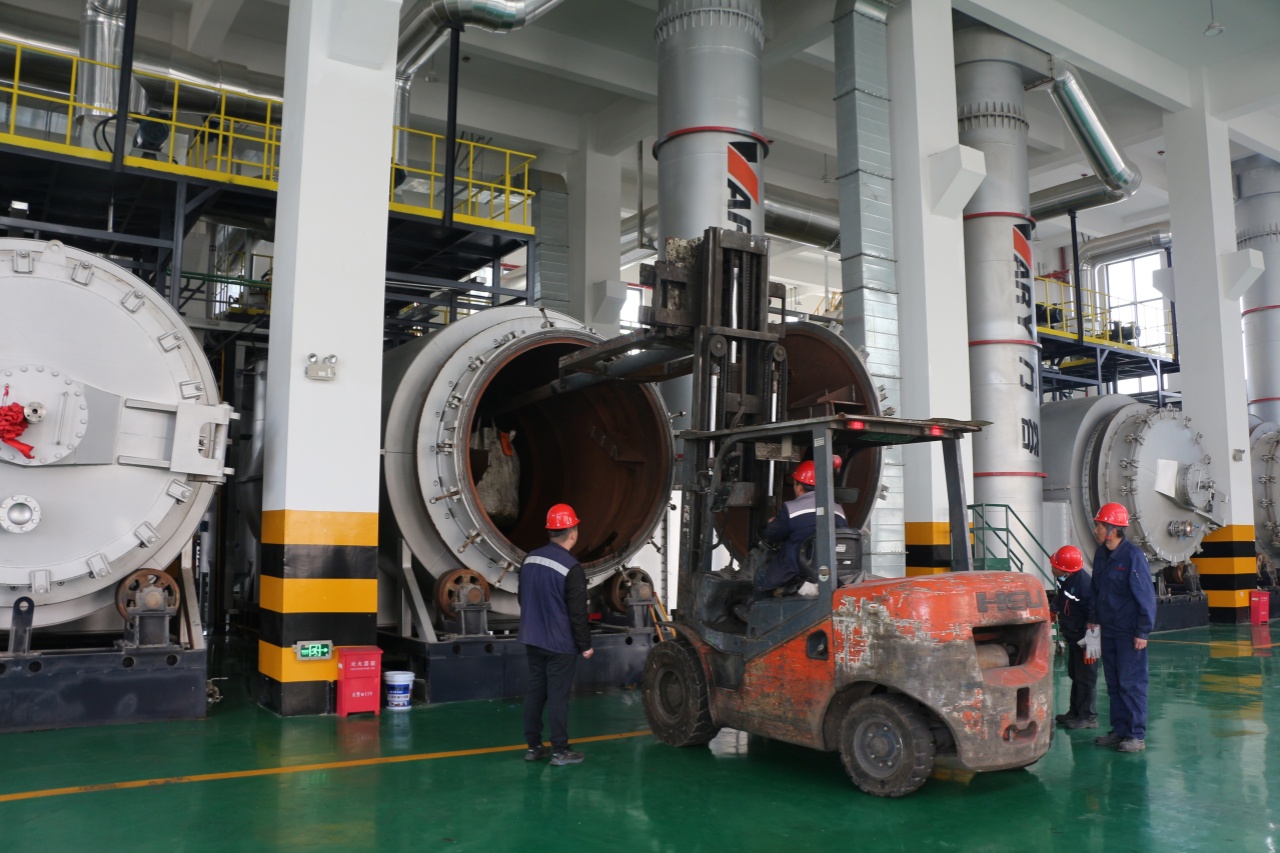

Facing the era's requirements of green circular development and carbon peak and carbon neutrality, Nantong Haizhiyang has successfully explored a resource utilization-oriented system solution for hazardous waste treatment. Among them, the batch-type oxygen-free pyrolysis technology equipment (BPH-15 furnace type) provided by Vary Tech adopts an independent hot blast stove heating structure design, with a single set of processing capacity up to 15 tons and a working cycle of 1.5 furnaces per day, which improves the treatment efficiency and becomes a key tool for Nantong Haizhiyang to realize "turning hazardous waste into treasure".

In the project planning stage, Vary Tech's project service team fully considered the balance between the factory building size and comprehensive thermal energy utilization, and innovatively adopted a double-layer vertical layout, which maximized space saving and effectively balanced efficient heat supply and heat loss.



Vary Tech's oxygen-free pyrolysis technology equipment has been included in the National Advanced and Applicable Technologies and Equipment for Industrial Resource Comprehensive Utilization. Compared with incineration, oxygen-free pyrolysis technology can pyrolyze organic hazardous waste in an oxygen-free environment, avoiding the generation of harmful substances such as dioxins from the source, effectively blocking the migration of heavy metals, and the flue gas emission is only 1/10 of that of incineration, truly realizing the reduction, harmlessness, and resource utilization of hazardous waste.

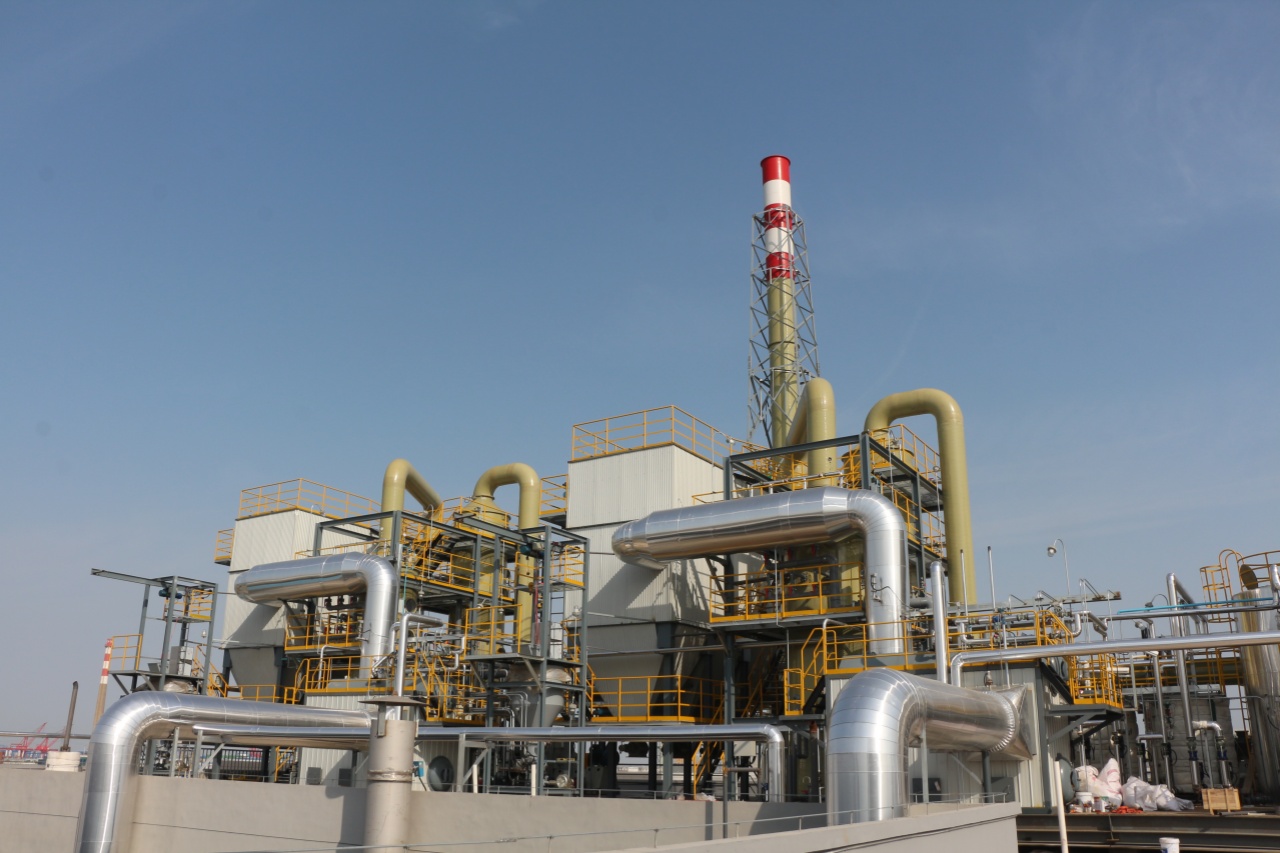

Under pyrolysis conditions, the macromolecular chains of organic hazardous waste are broken through thermal chemical reactions, producing high-value pyrolytic carbon and pyrolytic gas. The pyrolytic gas generates oil-based pyrolytic liquid after passing through the oil collection and purification system, and the non-condensable gas enters the combustion chamber for heat supply. The high-temperature flue gas generated by combustion is absorbed by the main pyrolysis furnace for most of the heat energy, and then enters the advanced flue gas treatment system to ensure up-to-standard emission without secondary pollution. The pyrolysis process realizes the stable transformation of heavy metals from exchangeable state to residue state in the reducing environment, effectively solidifies heavy metals, fundamentally solves the "hazardous" property of hazardous waste, and truly achieves environmental friendliness.


Pyrolysis Products with Great Prospects, Opening a New Era of Hazardous Waste Resource Utilization

The pyrolytic carbon and pyrolytic oil formed by hazardous waste pyrolysis have broad application market prospects, truly tapping the "green treasure" of hazardous waste.

Pyrolytic carbon can be mixed into resin-based composite materials as a filler or reinforcing agent to produce various building materials, such as recycled plates, floor tiles, sound insulation materials, and decorative components, which not only reduces costs but also improves the physical properties of the materials. In addition, due to its color characteristics, pyrolytic carbon has the potential to be used as a black pigment, which can be used in the production of water-based coatings, color pastes, or as a coloring agent for building materials, and is a high-quality substitute for traditional carbon black pigments.

Pyrolytic oil has a complex composition. After purification, it can replace traditional fuels and be widely used in industrial boilers or kilns. After further purification, it can even be used for internal combustion engine power generation or coal-fired power generation coupling, bringing certain economic benefits to enterprises and effectively reducing energy costs.



Vary Tech's "One-Stop" Service, Efficient and Reliable Project Implementation

In the process of following up the Nantong Haizhiyang project for more than two years, Vary Tech not only provided advanced equipment but also carried out localized customized design based on the actual needs of the project. Vary Tech provided "one-stop system service" throughout the project, from pre-construction environmental assessment technical support, equipment procurement guidance to later operation debugging and maintenance, providing all-round support for the smooth implementation of the project, ensuring the perfect fit between the final plan and customer needs.

Mr. Song from Nantong Haizhiyang said: "We chose to cooperate with Vary Tech because of their full-process professional support, perfect services, and leading equipment advantages, which makes us full of confidence in the long-term stable operation of the project."



At present, the project has been in stable operation for the 3rd year. Its efficient and environmentally friendly hazardous waste treatment capacity has served well-known enterprises such as Beijing Electromechanical Engineering General Design Department, China COSCO Shipping Group, and Shanghai Zhenhua Heavy Industries in hazardous waste disposal, winning wide recognition.



Actively Participating in the Construction of "Zero-Waste Park", Leading the Green Development of the Industry

Nantong Haizhiyang has actively participated in the creation of "zero-waste park" in the chemical industrial park of Nantong Development Zone. By applying Vary Tech's pyrolysis technology, it has realized the full-process treatment of hazardous waste and general solid waste, including collection, transfer, and resource utilization, reducing the total amount of hazardous waste by tens of thousands of tons annually. This initiative has not only greatly improved the environmental management level of the park but also made outstanding contributions to regional green development and the construction of "zero-waste city".



Empowered by advanced environmental protection technologies, hazardous waste can be transformed from "environmental burden" into "green treasure". The cooperation between Nantong Haizhiyang and Vary Tech is not only a perfect combination of technology and service but also a vivid manifestation of enterprises' practice of social responsibility and commitment. Vary Tech will continue to work with more partners to contribute scientific and technological strength to the development of circular economy.
